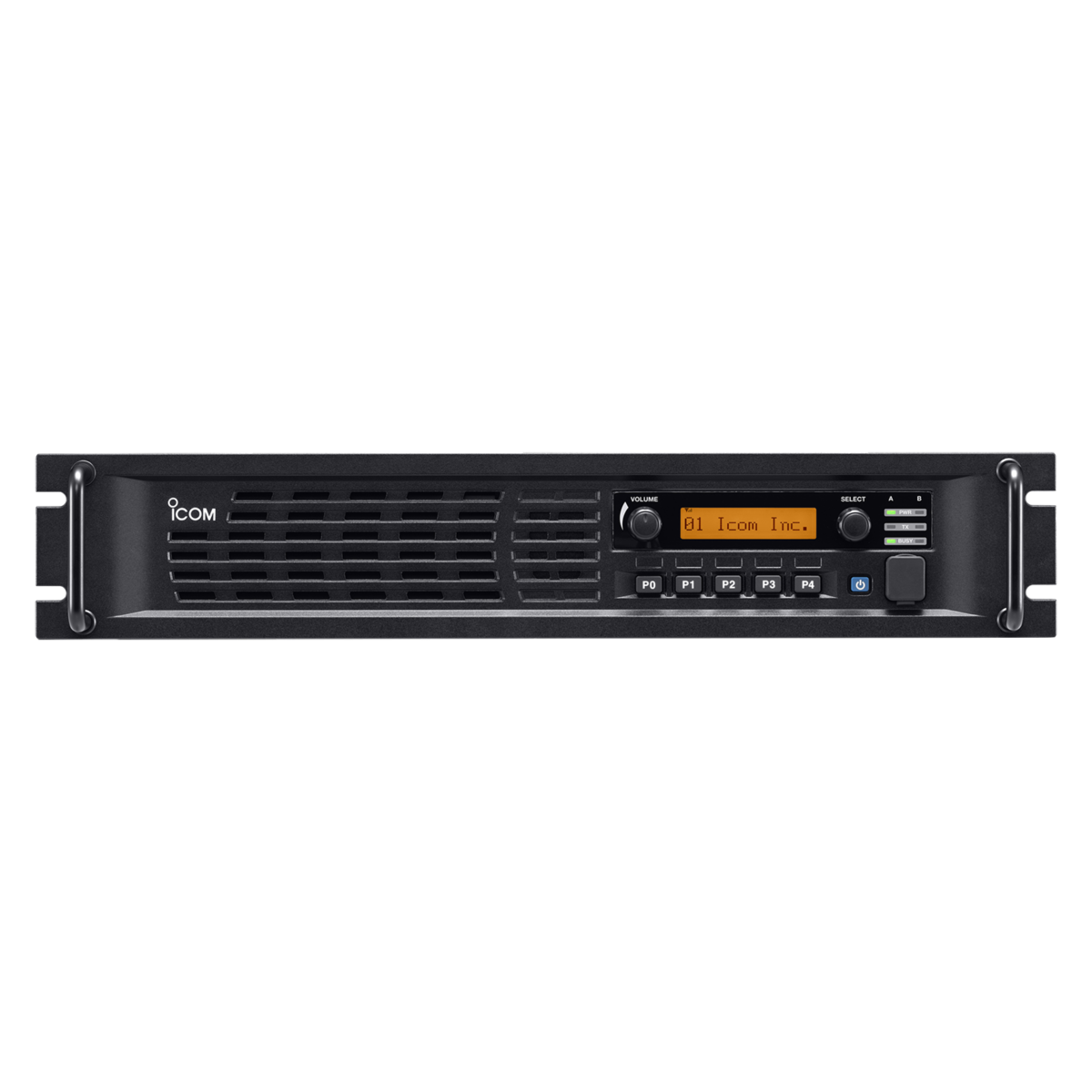

IC-FR5000/FR6000

Two RF Modules in One Unit The IC-FR5000/FR6000 series has an internal space for installing an optional RF unit, UR-FR5000 or UR-FR6000. Two RF modules can be installed in a chassis reducing installation space, and increasing channel capacity. They can be programmed and operated independently. 50W Output at 50% Duty Cycle or 25W 100% Duty […]

Category:
Brand:

Description

Two RF Modules in One Unit

The IC-FR5000/FR6000 series has an internal space for installing an optional RF unit, UR-FR5000 or UR-FR6000. Two RF modules can be installed in a chassis reducing installation space, and increasing channel capacity. They can be programmed and operated independently.

50W Output at 50% Duty Cycle or 25W 100% Duty Cycle Operation*

Employing a high performance power amplifier, the IC-FR5000 series provides a reliable 100% duty cycle operation at 25W output. When operated at the high power setting of 50W, the repeater operates with a 50% duty cycle.

50W Output at 100% Duty Cycle or 100W 50% Duty Cycle Operation with Optional Power Amplifier*

When need higher power, the optional UR-PA5000/UR-PA6000 series power amplifier provides 100W output power with a 50% duty cycle and 50W output with 100% duty cycle.

19-inch Rack Mount Design, 2U Height Low Profile Design

The IC-FR5000/FR6000 series has a rack mount bracket and handles for installation in an industry standard 19-inch rack.

Multiple CTCSS and DTCS Tone Decode

The IC-FR5000/FR6000 series detects multiple CTCSS and DTCS on a channel (up to 16 tones on a table) and downlinks (transmits) the received signal with a specified tone. This function is useful for sharing a channel with multiple groups.

Base Station Operation

The IC-FR5000/FR6000 series has 5 programmable buttons, 12-digit dot-matrix display and 32 memory channels allowing you to use the repeater as a base station.
